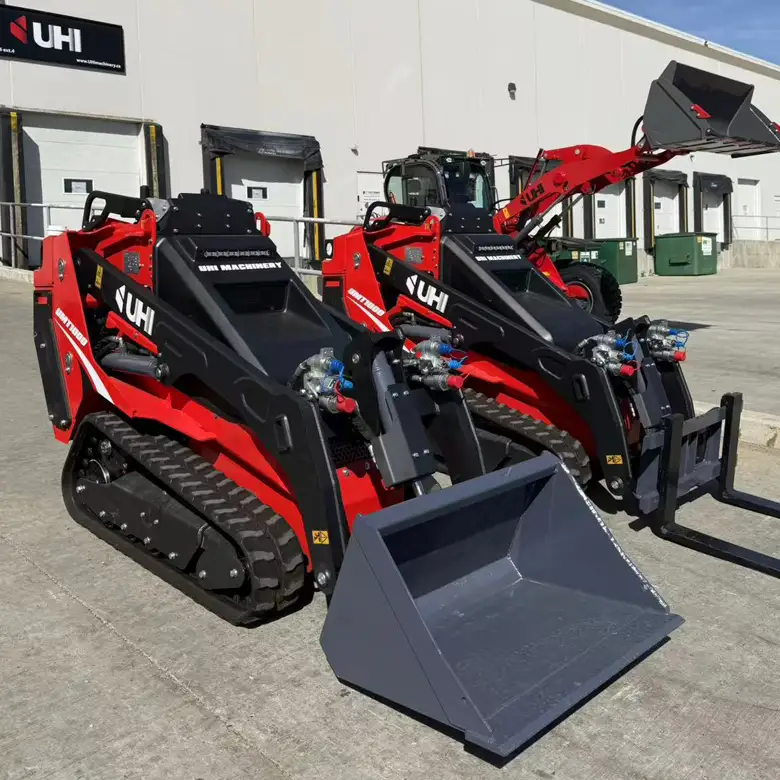

UHI Machinery UMT1000 455kg Rated Load. 24hp Kubota Engine
$28,400.00 + tax
✅ Engine: Kubota D1105 24 HP diesel engine(EPA Tier 4)
✅ Hydraulic System: Italian components – plunger pump, pilot valve, pilot handle, multi-tandem valve
✅ Performance: 2.1m lift height, 1,000 lbs rated load, 2,860 lbs tipping load
✅ Attachment Compatibility: Kubota CII coupler, custom brackets available
✅ Smart 7” LCD Screen: Keyless start, real-time machine data, customizable settings
✅ Operator Convenience: Throttle control, phone charging port, cup holder, intuitive joystick controls
✅ Safety: Auto-lock when the operator leaves the seat, adjustable power distribution for smoother operation
✅ Fuel Efficiency: 50L fuel tank for extended use
✅ Track & Stability: 1,130mm extended wheelbase, optional 230mm wide tracks for low ground pressure (27.4 kPa), 900mm width with 200mm tracks for tight spaces
Engine
Engine Model | Kubota D1105 |
Engine Rated Power | 24hp |
Engine Rated Speed | 3000rpm |
Hydraulic System
Max. operating flow | 2*33 l/min |
Main Demensions
Bucket Capacities | 0.2 m³ |
Dumping Reach | 335 mm |
Ground Clearance | 200 mm |
Max. Hinge Pin Height | 2110 mm |
Overall Length | 2160 mm |
Total Height | 1420 mm |
Total Wide | 900 mm |
Wheelbase | 1130 mm |
Technical Parameter
Bucket capacity | 0.2 m³ |
Max. Travel Speed | 5.2 km/h |
Rated Capacity | 455 kg |
Tipping Load | 1300 kg |
